In recent years, electrocoating technology has become a popular choice in the automotive, home appliance and other industrial fields due to its environmental friendliness, high efficiency and stable coating quality. However, the popularization of technology faces the challenges of high initial investment and hidden costs. The investment in production line equipment is huge, which is often difficult for small and medium-sized enterprises to afford. In addition, problems such as wastewater treatment and energy consumption control have also increased the financial pressure on enterprises. In this context, environmental equipment has become an important part of the e-coating line.
What parts does e-coating equipment consist of?
E-coating line is a highly automated coating process, mainly composed of two parts: core equipment and environmental auxiliary equipment. These equipment work together to ensure that the coating process is efficient and environmentally friendly while meeting product quality requirements.
Core equipment
The core equipment is the key part of the e-coating line, mainly including the following important components:
- E-coating tank: used for electrophoretic deposition of paint. The electrocoating tank contains electrolyte, and the current passes through the workpiece and the paint to form an electric field, which causes the paint to adhere evenly to the surface of the workpiece.
- Power supply system: Provides stable current for the electrocoating tank to ensure the uniformity and consistency of the coating process.
- Workpiece conveying system: The automated conveying system conveys the workpiece to the electrophoretic tank to ensure the position and time control of each workpiece during the e-coat process.
- Pretreatment system: The workpiece needs to be cleaned before entering the e-coat tank to remove impurities such as oil and dust on the surface to ensure the adhesion and uniformity of the paint.
- Drying and curing equipment: After the coating is completed, the workpiece usually needs to be dried or heated to ensure the adhesion and surface hardness of the coating.
Environmental auxiliary equipment
In order to ensure the efficiency and environmental protection of the electrocoating process, environmental auxiliary equipment plays a vital role in it. Mainly including:

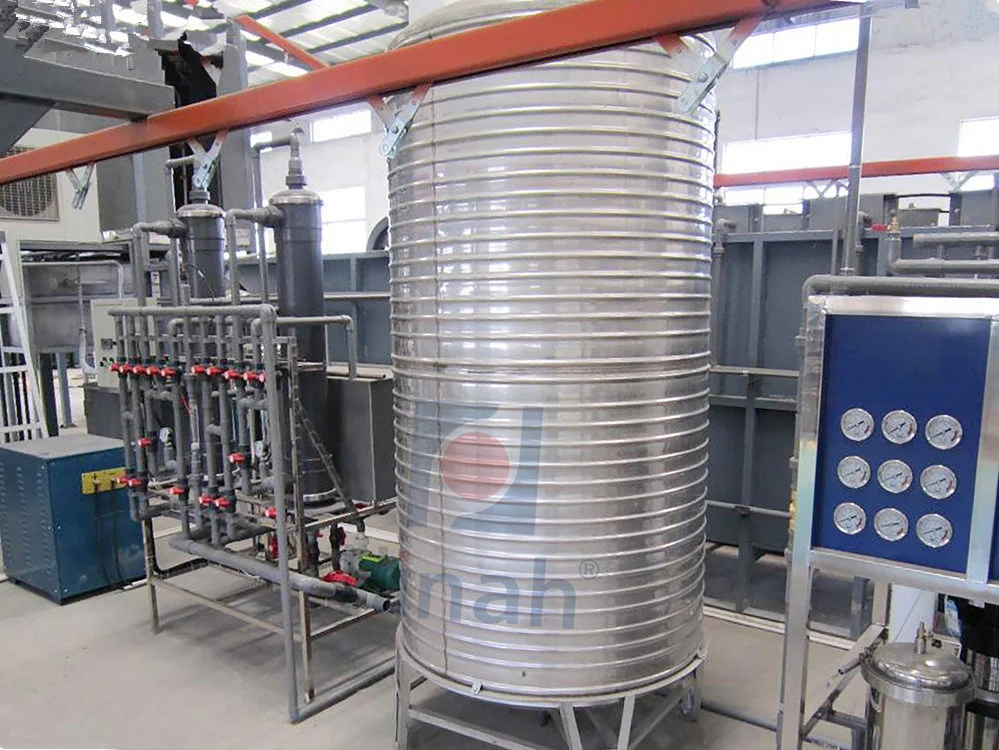

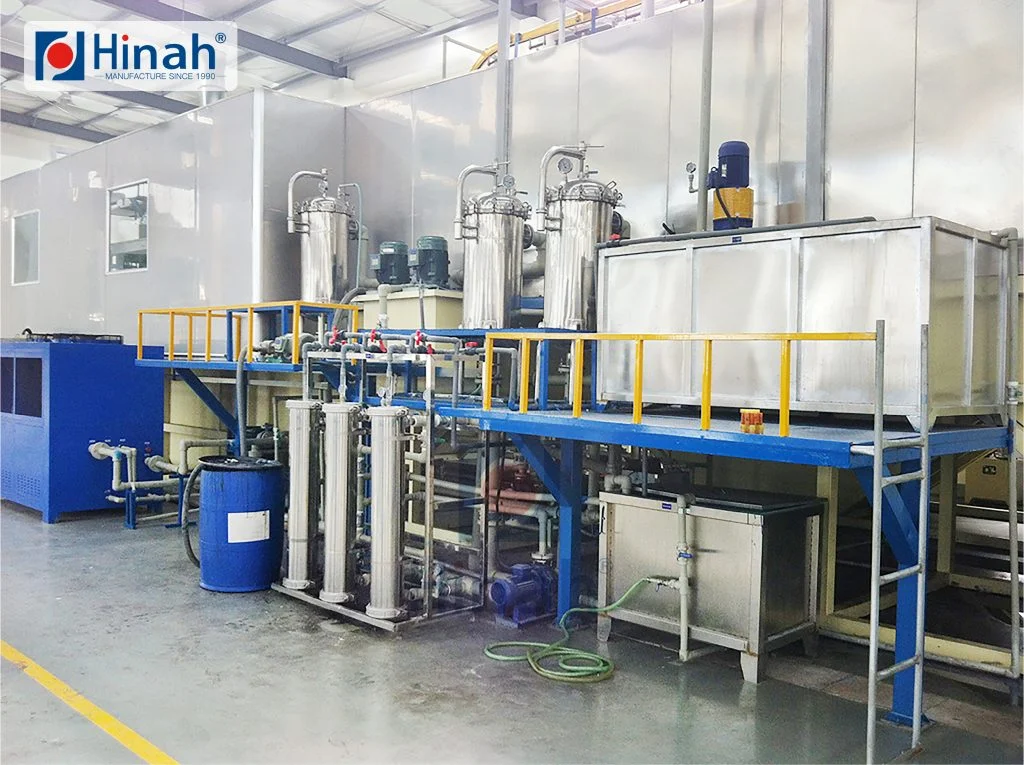

- Ultrafiltration equipment: During the electrophoretic coating process, ultrafiltration equipment can effectively remove particles and impurities in the paint and improve the purity and stability of the paint. Ultrafiltration equipment separates and removes impurities through filtering technology.
- Wastewater treatment equipment: The wastewater generated during the electrophoretic coating process needs to be strictly treated to meet environmental protection standards. These equipment include wastewater neutralization equipment, filtering devices and recovery systems.
- Air treatment system: including fans, filtering devices, etc., responsible for the air circulation and purification of the coating workshop, reducing the pollution of harmful substances generated during the coating process to the environment.

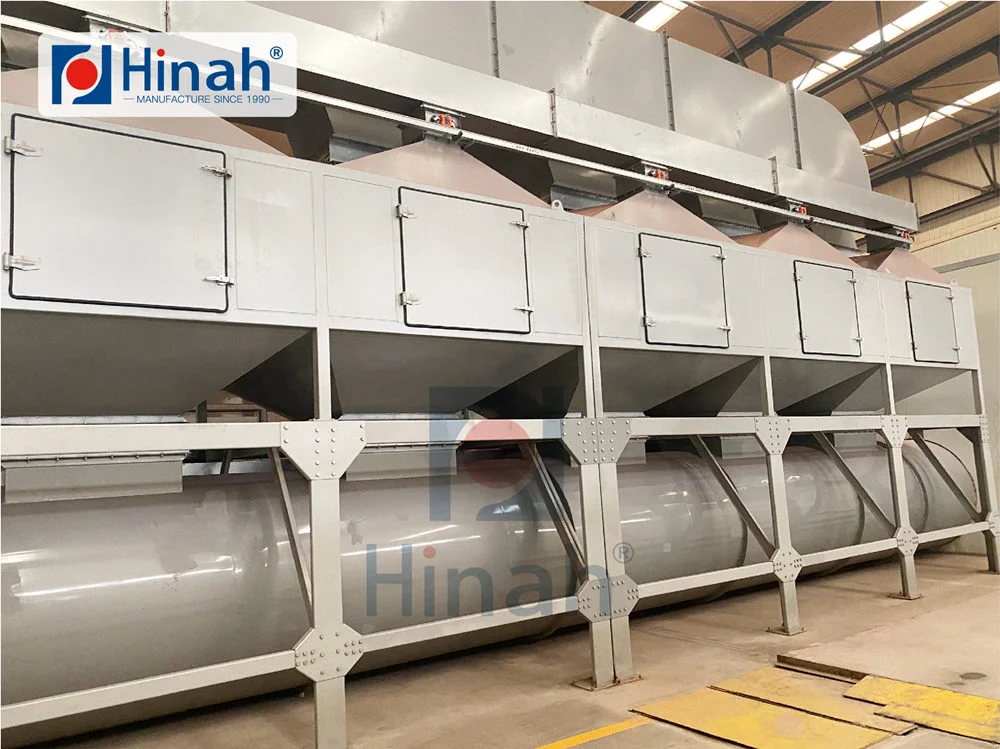

- Emission system: Treat harmful gases such as waste gas and steam generated during the coating process to reduce pollution to the environment. Usually, adsorption, filtration, condensation and other methods are used for treatment.
The core role of environmental equipment in e-coating line
The e-coating line not only needs to meet the requirements of coating quality and production efficiency, but also must meet strict environmental protection standards. In the electrophoretic coating process, environmental equipment plays a vital role to ensure the environmental compliance, coating quality and production efficiency of the coating line.
1. Ensure environmental compliance
- Reduce pollution emissions:
In the production process of the e-coating line, the treatment of wastewater and waste gas is an important environmental protection link. By recycling the electrophoretic liquid through the ultrafiltration system, the tank liquid can achieve closed-loop circulation, which not only reduces the discharge of wastewater, but also maximizes the service life of the coating and reduces resource waste. In addition, the exhaust gas collection device can effectively capture volatile organic compounds (VOCs) to prevent these harmful substances from being discharged into the air. These environmental protection equipment help the electrophoretic coating line comply with national and regional environmental regulations and reduce environmental pollution.
- Efficient use of resources:
Compared with the traditional spraying process, the coating utilization rate of electrophoretic coating is as high as more than 95%, while the coating utilization rate of traditional spraying is only 60%-70%. The electrocoating line not only reduces material waste but also improves production cost-effectiveness through efficient coating utilization. In addition, the closed-loop design of the electrocoating system also helps save energy and resources, further improving environmental compliance.
2. Ensure coating quality
- Uniformity and stability:
The circulation filtration system in the e-coating line plays a key role. The tank liquid in the coating tank may precipitate and impurities as production progresses, affecting the uniformity and stability of the coating. The efficient filtration system continuously circulates and cleans the paint to prevent the sediment in the tank liquid from affecting the coating quality, ensuring the consistency of the coating composition and temperature, avoiding coating bubbles and particle defects, thereby ensuring that the coating of each workpiece is uniform and smooth.
- Process parameter control:
The process parameters of electrophoretic coating are crucial to the coating quality, and the environmental equipment optimizes the coating effect by precisely controlling these parameters. The constant temperature system can maintain the tank liquid temperature between 28-34℃, which is the optimal temperature range for the electrophoretic coating process, ensuring the uniformity and adhesion of the coating deposition. At the same time, the voltage regulator can adjust the electric field strength according to different coating requirements and optimize the electrophoretic deposition process, thereby ensuring the consistency of the coating thickness and avoiding quality problems caused by too thin or too thick coating.
3. Improve production efficiency
- Automation and continuity:
The degree of automation of the e-coating line directly affects production efficiency. The combination of environmental equipment such as closed e-coat tanks and conveyor belt systems makes the production process more continuous and stable, greatly reducing manual intervention and downtime. The automated control system can monitor various parameters in the e-coating process in real time to ensure that the coating process is always in the best state. This continuous production not only improves production efficiency, but also shortens the production cycle and reduces production costs.
- Equipment stability:
The equipment stability in the e-coating line directly affects the coating quality and production efficiency. Environmental equipment with high reliability design, such as corrosion-resistant stainless steel tanks and high-temperature resistant paint recovery systems, can withstand long-term high-intensity production. Through stable equipment operation, the failure rate is reduced, ensuring that the coating line can continue to operate, and improving the overall production efficiency and product delivery speed.
The impact of environmental equipment on the economic efficiency of electrocoating
In the e-coating line, environmental equipment not only helps improve the quality and environmental friendliness of coating, but also directly affects the economic benefits of the enterprise.
1. Reduce overall costs
Environmental equipment such as paint recovery systems and wastewater treatment devices can reduce paint consumption and wastewater discharge, thereby reducing the cost of raw materials and wastewater treatment. In addition, the high paint utilization rate of electrophoretic coating (up to 95%) significantly reduces material waste compared to traditional spraying processes.
2. Avoid environmental risks
The exhaust gas treatment system ensures that the coating process complies with environmental regulations, avoiding the risk of fines and production suspension due to non-compliance. At the same time, energy-saving and environmental protection equipment reduces long-term operating costs by optimizing energy consumption.
3. Long-term return on investment
Although the initial investment is high, environmental protection equipment can reduce the waste of materials and energy, improve production efficiency, and bring a faster payback period. In addition, electrophoretic coating lines that meet environmental standards can improve brand competitiveness and win more market opportunities for enterprises.
